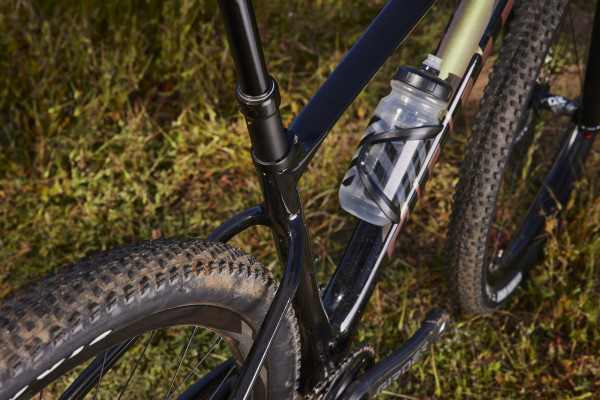

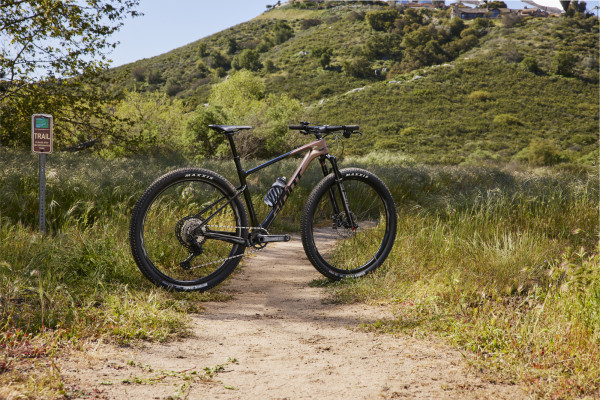

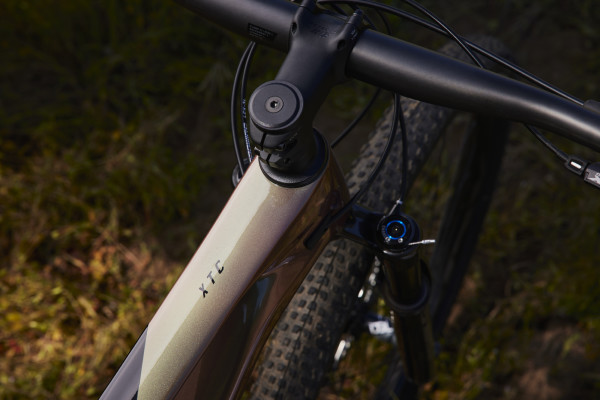

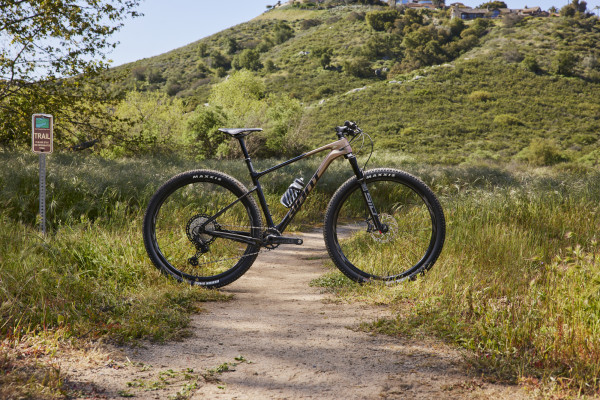

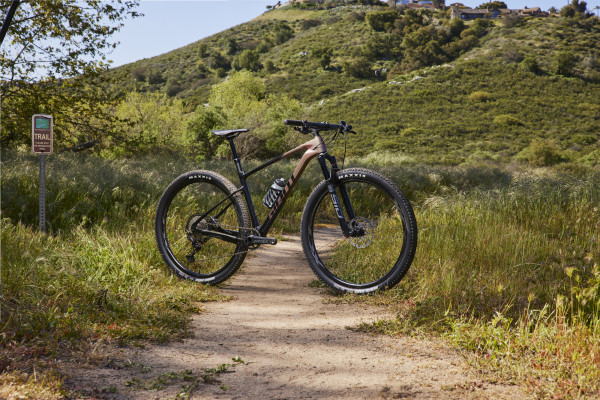

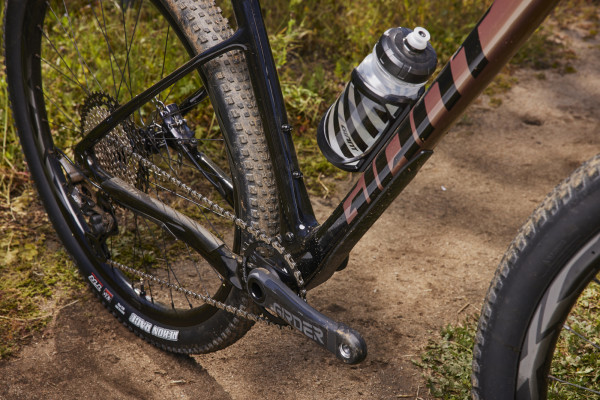

XTC Advanced SL 29 1
2023
4949.25 Original price 6599
Light, efficient and flat-out fast. When the climbs are steep and the speeds are high, this is the weapon of choice for Giant’s XC pros.
Key Performance Factors
Superlight and responsive
Pro-level Advanced SL composite frame is the lightest off-road frame Giant has ever produced, offering serious XC racers a competitive advantage for climbing, accelerating and sprinting.
Ultra-efficient
The frame is engineered with the highest stiffness-to-weight-ratio of any hardtail mountain bike in its class. This translates to ultra-efficient pedalling power and precise handling on the trail.
Custom compliance
Each frame is custom-tuned based on its size. Individual composite lay-up schedules are created to optimise vertical compliance and produce a smoother ride quality on XC terrain.
Techs & Features
Advanced Composite SL Technology
Giant’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fibre Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 163 cm5’4”
172 cm5’8”
- M
- 171 cm5’7” 180 cm5’11”
- L
- 179 cm5’10” 188 cm6’2”
- XL
- 187 cm6’2” 198 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 38015 | 43117 | 47518.7 | 52520.7 |
| B | Seat Tube Angle (degrees) | 73.5° | 73.5° | 73.5° | 73.5° |
| C | Top Tube Length (mm) (inch) | 59523.4 | 61424.2 | 63525 | 66526.2 |
| D | Head Tube Length (mm) (inch) | 953.7 | 953.7 | 1054.1 | 1154.5 |
| E | Head Tube Angle (degrees) | 69.5° | 69.5° | 70.0° | 70.0° |
| F | Fork Rake (mm) (inch) | 431.7 | 431.7 | 431.7 | 431.7 |
| G | Trail (mm) (inch) | 94.93.7 | 94.93.7 | 94.93.7 | 94.93.7 |
| H | Wheelbase (mm) (inch) | 108742.8 | 110643.5 | 112844.4 | 115945.6 |
| I | Chain Stay Length (mm) (inch) | 42516.7 | 42516.7 | 42516.7 | 42516.7 |
| J | Bottom Bracket Drop (mm) (inch) | 582.3 | 582.3 | 582.3 | 582.3 |
| K | Stack (mm) (inch) | 60423.8 | 60423.8 | 61324.1 | 63224.9 |
| L | Reach (mm) (inch) | 41616.4 | 43517.1 | 45317.8 | 47718.8 |
| M | Stand Over Height (mm) (inch) | 73729 | 76430.1 | 79131.1 | 82932.6 |
| O | Stem Length (mm) (inch) | 602.4 | 702.8 | 803.1 | 903.5 |
| P | Crank Length (mm) (inch) | 1706.7 | 1756.9 | 1756.9 | 1756.9 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
