Propel Advanced SL Frameset
to your cart.
Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance.
New
Sale
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.
Propel Advanced SL Frameset
$4,674.99 Original price $5,499.00
Similar Products
Best For: Aero Race
Propel Advanced SL Team Frameset
$5,799 RRP
Unleash your sprint with 200 metres to go. Close a gap, chase back, launch a solo attack. This new aero road machine is made for the moments that count. More aero, more adjustable, more ways to win.
Key Performance Factors
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produces outstanding overall aero performance.
Easier adjustability
All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.
Highlights
The Propel Advanced SL frameset is engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimized for minimal drag. The tubes feature a truncated ellipse shape for a frame that is ultra-stiff and superlight, while the integrated seatpost reduces weight, improves aero performance, and adds road-smoothing compliance. This special edition honors Team Jayco AlUla with the team’s bold colors.
1
AeroSystem Shaping
2
Advanced SL Composite
Professional-grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including Continuous Fiber Technology, CNT Technology and Fusion Process.
3
Vector Integrated Seatpost
Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 45 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
4
OverDrive Aero
Found inside the head tube of the all-new Propel range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
5

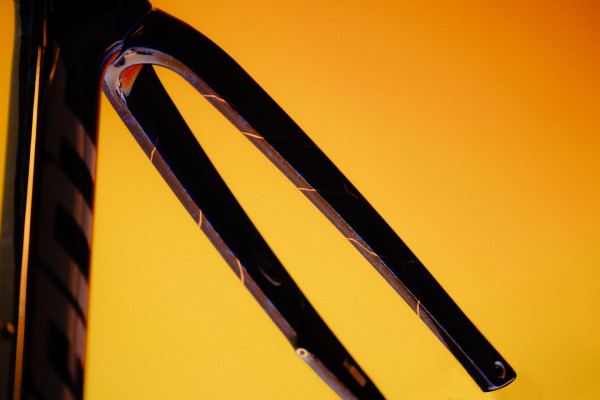

Full Composite Fork
D-shaped steerer tube and legs are constructed entirely from Giant’s Advanced SL-grade composite for the lightest weight and superior handling.
6
PowerCore
A massively oversized bottom bracket area features a fully integrated 86.5mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
7
New Cable Routing
Frame features all-new cable porting for sleek, non-cluttered appearance and easier adjustability.
8
Aero Bottle Cages
Custom-engineered down tube and seat tube-specific water bottle cages help minimize overall aerodynamic drag.
Techs & Features
Advanced Composite SL Technology
Giant’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fibre Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.
AeroSystem Shaping Technology
Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimise each tube shape to deliver superior aerodynamic performance.
Integrated Seatpost
Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 40 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
OverDrive Aero
Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.
- S
- 165 cm5’5”
175 cm5’9”
- M
- 171 cm5’7” 181 cm5’11”
- ML
- 177 cm5’10” 187 cm6’2”
- L
- 183 cm6’0” 193 cm6’4”
- XL
- 189 cm6’2” 199 cm6’6”
| S | M | ML | L | XL | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 71028 | 74029.1 | 77030.3 | 80031.5 | 83032.7 |
| B Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C Top Tube Length (mm) (inch) | 53521.1 | 55021.7 | 56522.2 | 58022.8 | 60023.6 |
| D Head Tube Length (mm) (inch) | 1305.1 | 1455.7 | 1656.5 | 1857.3 | 2007.9 |
| E Head Tube Angle (degrees) | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 |
| G Trail (mm) (inch) | 62.52.4 | 57.82.2 | 57.82.2 | 57.82.2 | 57.82.2 |
| H Wheelbase (mm) (inch) | 97738.5 | 98038.6 | 99139 | 100639.6 | 102040.2 |
| I Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| J Bottom Bracket Drop (mm) (inch) | 702.8 | 702.8 | 672.6 | 672.6 | 672.6 |
| K Stack (mm) (inch) | 52820.8 | 54521.5 | 56222.1 | 58122.9 | 59623.5 |
| L Reach (mm) (inch) | 38315.1 | 38815.3 | 39315.5 | 40215.8 | 41216.2 |
| M Stand Over Height (mm) (inch) | 75529.7 | 77530.5 | 79431.3 | 82132.3 | 83432.8 |
| O Stem Length (mm) (inch) | 903.5 | 1003.9 | 1104.3 | 1104.3 | 1204.7 |
| P Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
